Yeastar 5G CPE

Yeastar 5G CPE

Unleash the Full Speed of 5G

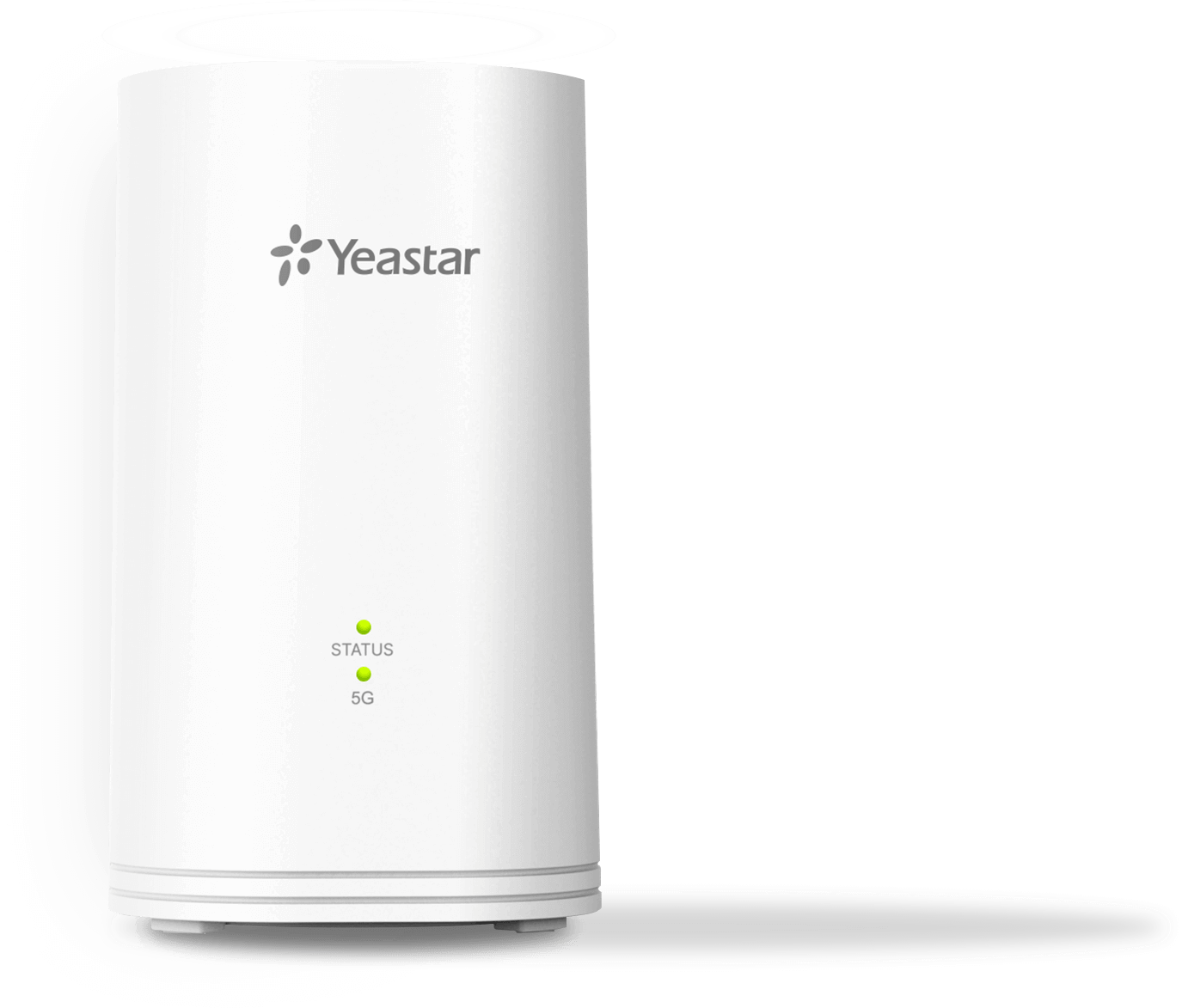

Yeastar 5G CPE is a 5G connection hub that converts 5G signals into Wi-Fi or wired Ethernet. Running with a router or switch, it connects businesses with ultra-fast networks. High signal quality, wide coverage, and up to 2.5 Gbps download speed empower Yeastar 5G CPE to deliver Gigabit speeds effectively. It also makes it convenient for businesses to reap the benefits of 5G and apply it in various scenarios.

Comprehensive Coverage

Support 5G NSA/SA, 4G, and 13 5G frequency bands

Unmatched Speed

2.5 Gbps peak 5G download speed

High Performance

Qualcomm Quad-core Processor & 512 MB RAM

Unleash Full Speed of 5G

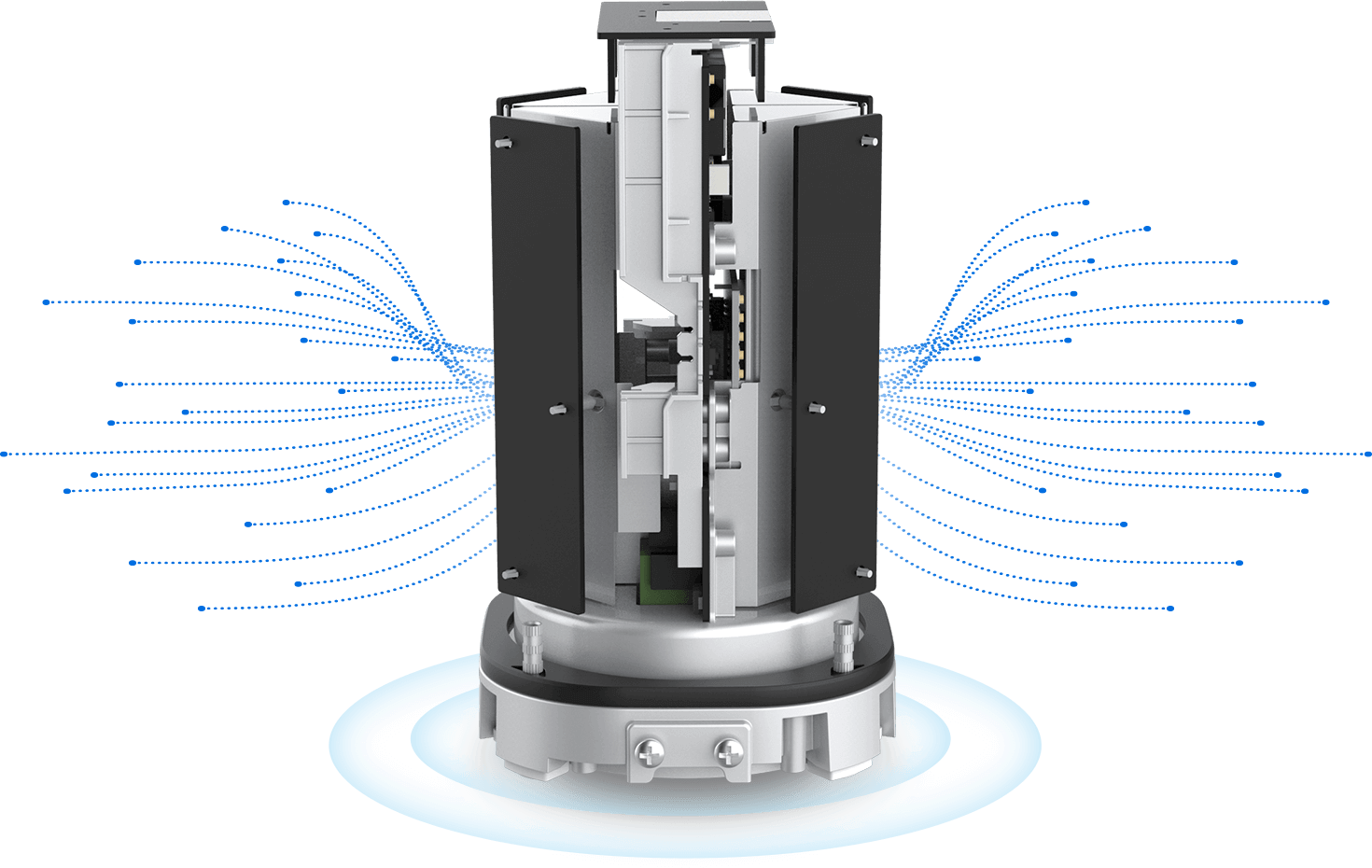

Designed for better signal and more speed

4×4 MIMO 5G cellular, 2×2 MIMO Wi-Fi, and optional GPS in one housing

Equipped with omnidirectional high-gain antennas

Receive signals more swiftly wherever the device is placed

2.4GHz and 5GHz Dual Bands Wi-Fi

Designed for better signal and more speed

Embrace resilience and uptime

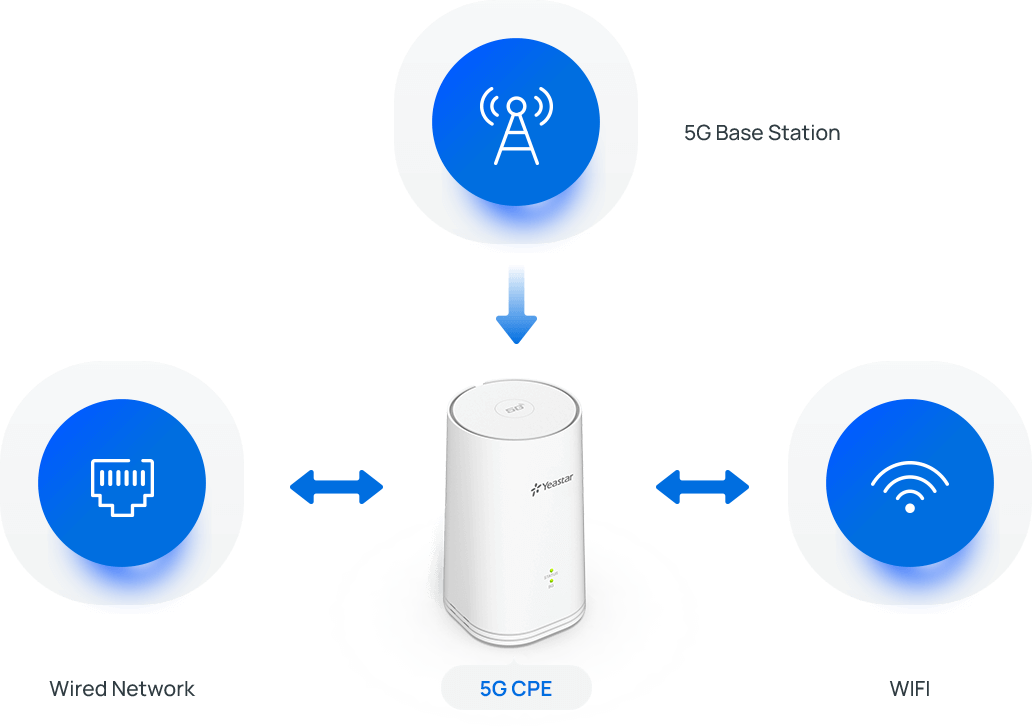

Supporting 5G, wired networks, and Wi-Fi networks, Yeastar 5G CPE adds link diversity. What’s more, link failover from 5G, Ethernet, and Wi-Fi creates High-Availability networks and reduces downtime.

Embrace resilience and uptime

Built to blend in

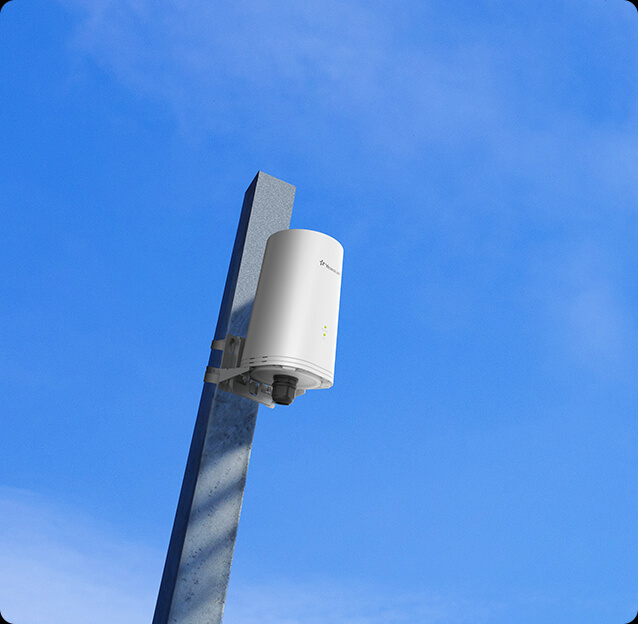

Easy to install and deploy, Yeastar 5G CPE boasts flexible mounting. Simply put it on your table, mount it to the wall or pole, or fasten it with a magnetic lock. Featuring a sleek cylinder design and IP67 protection level, it comfortably blends in any business environment, indoor and outdoor.

Built to blend in

Built to blend in

Built to blend in

Specifications

Processor

Qualcomm Quad-core CPU, 716.8 MHz , ARM Cortex-A7
8 GB Flash Memory, 512 MB DDR3 RAM

.

Cellular

Applicable Network: 5G / 4G LTE
Network Mode: NSA/SA
8 Built-in Antennas

.

Interface

Ethernet: 2×10/100/1000 Mbps
SIM Card Slot: 1 (2FF)

.

Wi-Fi

Frequency Band: 2.4 GHz & 5 GHz
IEEE 802.11a/b/g/n/ac
WEP/WPA/WPA2 Authentication
WEP/TKIP/AES Encryption
Work as a Client or AP
4 Built-in Antennas

.

GPS (optional)

GPS/GLONASS/BeiDou/Galileo/QZSS
1 Built-in Antenna

.

Button & Indicators

Reset Button
1 Status Indicator
1 Cellular Indicator

.

Software

Network Protocol: IPv4/IPv6, PPP, PPPoE, SNMP v1/v2/v3,
TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP,
HTTPS, DNS,ARP, QOS, SNTP Telnet, VLAN, SSH, etc.
VPN: DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
Firewall: SPI, ACL, DMZ, Port Forwarding
AAA: Radius, Tacacs+, LDAP, Local Authentication
High Availability: VRBP, Link Failover

.

Management

Web Management Portal, CLI, SMS, on-demand dial up, SNMP v1/v2/v3
Remote Management

.

Power

9-48 VDC
Surge Protection
Reverse Polarity Protection
802.3af POE

.

Physical

Protection Level: IP67
Dimension: 105 x 110 x 188 mm
Dimension (with waterproof connector): 105 x 110 x 218 mm
Wall Mounting, Pole Mounting, Desktop Mounting, and Screw Locking

.

Environment

Operating temperature: -40°C~70°C
Storage temperature: -40°C~85°C
Humidity: 0% ~ 95% (non-condensing) under 25°C

.
