TA Series FXS VoIP
Gateway

Cutting-edge products for small and medium enterprises that wish to integrate a traditional phone system into any IP-based system

Stand-alone FXS VoIP gateway with carrier-grade features and reliability.

Fully compliant with SIP and IAX2, also features flexible calling rules.

Feature-rich

Feature-rich

A robust feature set that fulfills your various needs and cuts communication cost

Easy

Easy

Simple and intuitive Web-based configuration saves you loads of time

Reliable

Reliable

Stable with advanced hardware and software architecture

Interoperability

Interoperability

Interoperable with a broad list of softswitch, PBX, and IP-PBX like Yeastar, Elastix and Lync Server

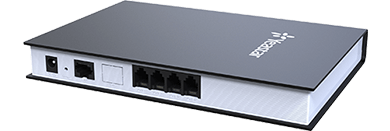

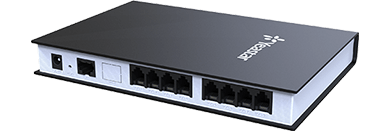

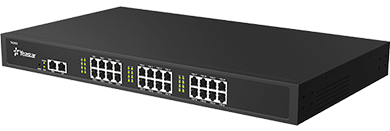

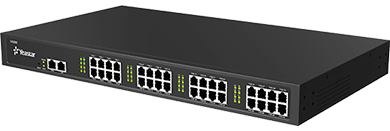

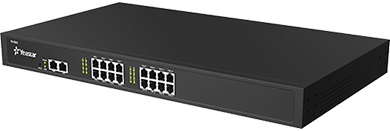

Models TA400 TA800 TA1600 TA2400 TA3200
RJ11 FXS Ports 4 8 16 24 32
RJ 21 Ports 1 1 2
LAN 1 10/100Mbps
WAN 1 10/100Mbps
Protocol SIP (RFC3261), IAX2
Transport UDP, TCP, TLS, SRTP
Codec G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
Voice Capability ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, PLC
DTMF Mode RFC2833, SIP Info, In-band
Fax T.38 and Pass-through
QoS DiffServ, ToS, 802.1 P/Q VLAN tagging
Network DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN
Network Protocol FTP, TFTP, HTTP, HTTPS, SSH
Management Protocol SNMP, RADIUS, TR-069
Remote Management N/A Yes
Signaling FXS Loop Start, FXS Kewl Start
Caller ID BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal
Power 12V, 1A AC 100-240V (12V 5A)
Dimensions (L × W × H) (mm) 200 × 137 × 25 440 × 250 × 44
Operation Range 0°C to 40°C, 32°F to 104°F;
Storage Range -20°C to 65°C, -4°F to 149°F
Humidity 10-90% non-condensing
Mounting Desktop, Wall-mount Desktop, Rack-mount
Compatibility Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft

Key Features

  • 3-way Conference
  • Attack Alert
  • Auto Provisioning with Yeastar IP-PBX
  • Blind Transfer
  • Caller ID Display
  • Call Waiting
  • Firewall
  • Hotline
  • IP Blocklist
  • Nat Traversal
  • Radius Accounting & Login
  • Speed Dial
  • TR-069
  • Web-based Management
  • API
  • Attended Transfer
  • Backup and Restore
  • Call Detail Records
  • Call Forward (Always, Busy, No Answer)
  • Do Not Disturb
  • Firmware Upgrade by HTTP/TFTP
  • Hunting Groups
  • MWI (FSK, Neon, Polarity Reversal)
  • Packet Capture Tool
  • SNMP
  • System Logs
  • Voice Menu for Basic Configuration
  • Remote Management

USE CASES

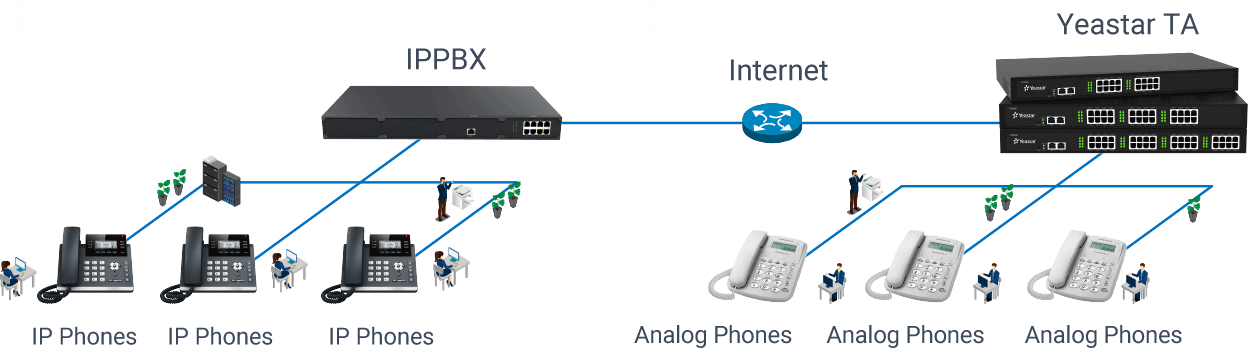

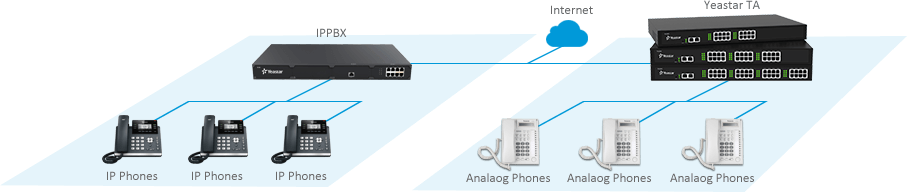

Analog Extensions for IP-PBX

By connecting analog phones and fax machines directly to the FXS ports of TA series gateways, or TA series analog telephony adapters, analog phones are enabled to work as extensions of the IP-PBX. Without additional investment on expensive IP phones, enterprises could access VoIP networks with the cheap analog phones.
More

analog extensions for ippbx

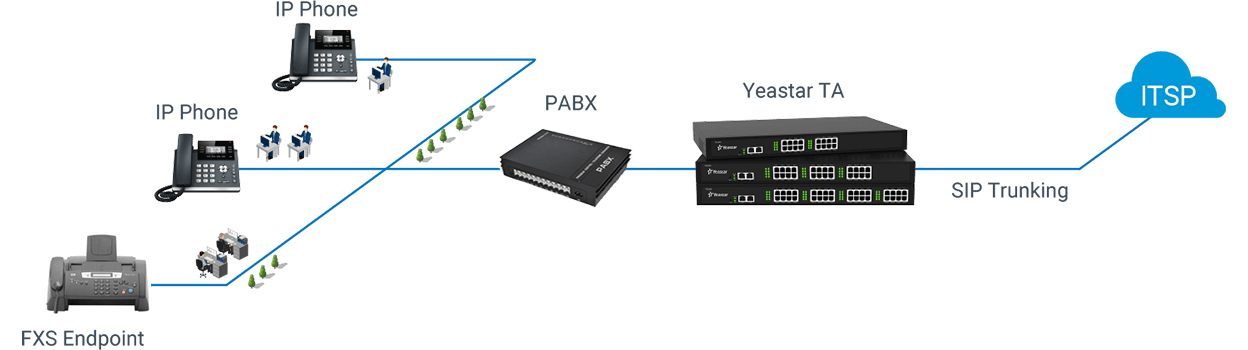

Connect Legacy PBX with SIP Trunkings

TA series immediately connects legacy equipment to cost-saving SIP trunkings. You could also connect analog phones and fax machines to SIP trunkings with TA series. Besides preserving investment on legacy equipment, enterprises could also utilize the benefit of VoIP easily and conveniently.
More

Connect Legacy PBX with SIP Trunkings

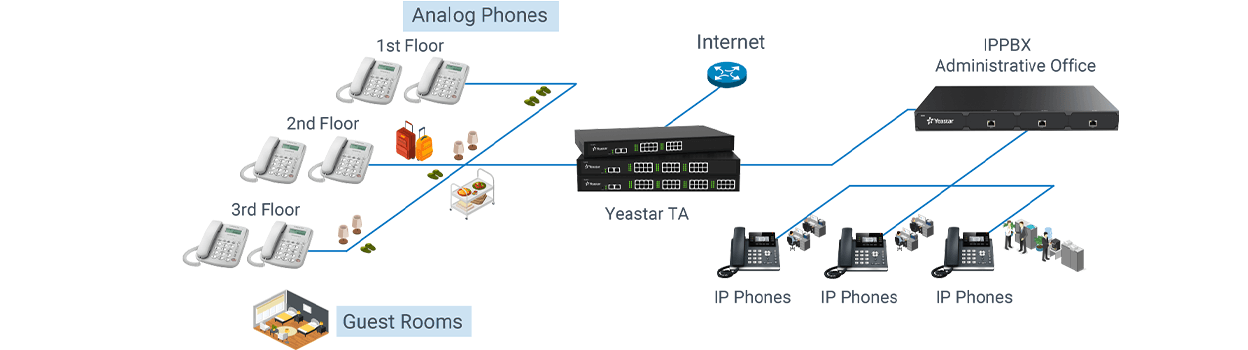

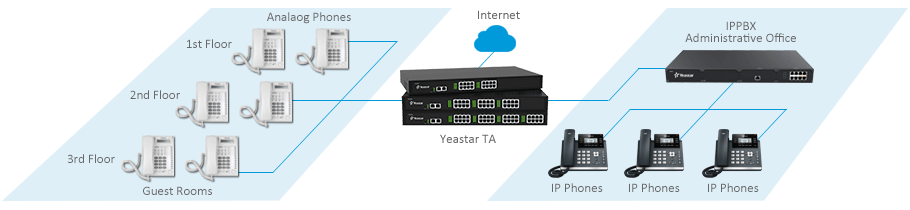

VoIP Enabling the Hotels with TA

TA series connect existing analog guest phones to the VoIP network that delivers guest communications with crystal clear voice call, MWI (Message Waiting Indicator) support. For hotels that wish to keep the existing hotel phones, introducing TA FXS Gateway would be a cost-effective and trouble-free solution.
More

Analog Extensions for IP-PBX
