TA Series FXO VoIP
Gateway

A cost-effective and reliable solution for office-to-office voice connectivity

Connect analog telephone lines or PABX extension interface to VoIP networks.

Businesses of all sizes can rely on this innovative solution.

Toll-quality voice call and top performance and reliability.

Feature-rich

Feature-rich

A robust feature set that fulfills your various needs and cuts communication cost

Easy

Simple and Easy

User-friendly Web GUI and intuitive operations. Comprehensive call log, system logs, hardware logs, and debug logs

Reliable

High Performance

Superb voice compression with industry standard codecs. Tested and certified with Elastix and compatible with other IP systems

Interoperability

Auto Provisioning

Support PnP or DHCP provisioning by Yeastar PBX and standard open protocol TR-069

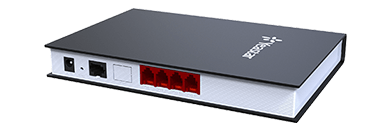

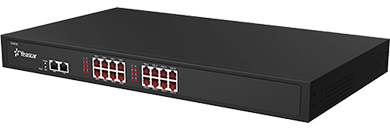

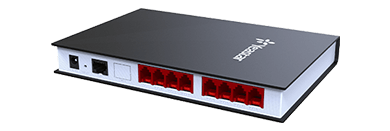

Models TA410 TA810 TA1610
RJ11 FXO Ports 4 8 16
RJ 21 Ports 1
LAN 1 10/100Mbps
WAN 1 10/100Mbps
Protocol SIP (RFC3261), IAX2
Transport UDP, TCP, TLS, SRTP
Codec G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
Voice Capability ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
DTMF Mode RFC2833, SIP Info, In-band
Fax T.30
QoS DiffServ, ToS, 802.1 P/Q VLAN tagging
Network DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN
Network Protocol FTP, TFTP, HTTP, HTTPS, SSH
Management Protocol RADIUS
Remote Management N/A Yes
Signaling FXS Loop Start, FXS Kewl Start
Caller ID BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal
FXO Connectivity Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection
Power 12V, 1A AC 100-240V (12V 5A)
Dimensions (L × W × H) (mm) 200 × 137 × 25 440 × 250 × 44
Operation Range 0°C to 40°C, 32°F to 104°F;
Storage Range -20°C to 65°C, -4°F to 149°F
Humidity 10-90% non-condensing
Mounting Desktop, Wall-mount Desktop, Rack-mount
Compatibility Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix.

Key Features

  • Answer Detection
  • Attack Alert
  • Auto Provisioning with Yeastar IP-PBX
  • Backup and Restore
  • Call Back
  • Call Detail Records
  • Caller ID Display
  • Firewall
  • Firmware Upgrade by HTTP/TFTP
  • Hangup Detection
  • IP Blocklist
  • Nat Traversal
  • Packet Capture Tool
  • Programmable AC Impedance
  • System Logs
  • Web-based Management
  • TA1610 Supports Remote Management

USE CASES

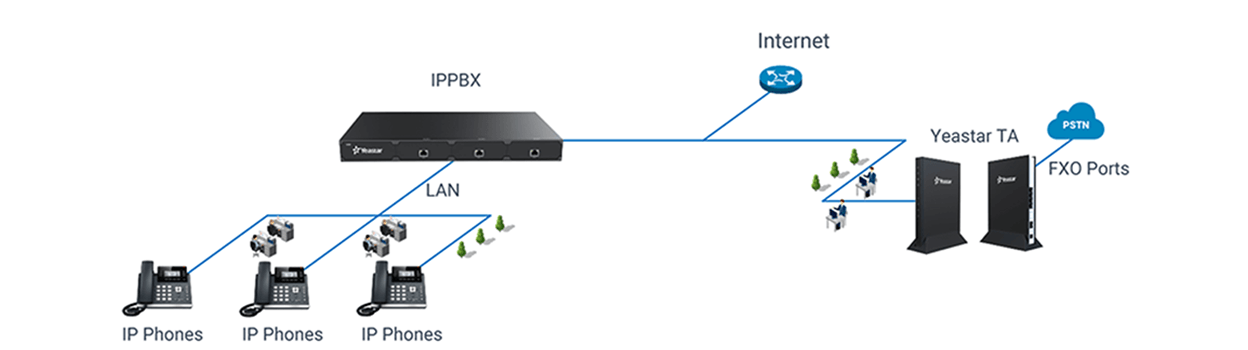

PSTN Trunking for IP-PBX

TA FXO Gateway provides an easy and trustworthy conjunction of IP-based system and traditional telephone line. It is suitable when the local IP telephony network is constructed gradually in an institution that already has a legacy telephony network. Any SIP-based VoIP infrastructure, including IP-PBX, hosted IP-PBX, VoIP call center could benefit from this conjunction.

pstn-trunking-for-ippbx

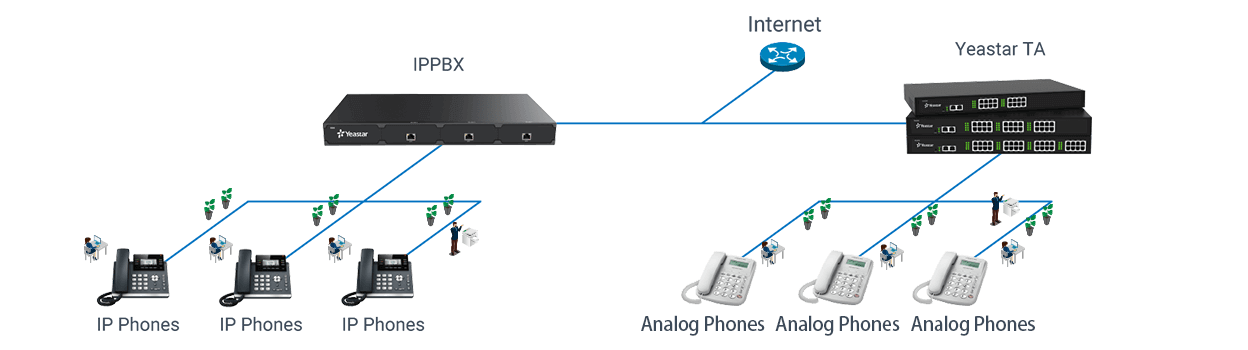

Analog Extensions for IP-PBX

By connecting analog phones and fax machines directly to the FXS ports of TA series gateways, or TA series analog telephony adapters, analog phones are enabled to work as extensions of the IP-PBX. Without additional investment on expensive IP phones, enterprises could access VoIP networks with the cheap analog phones.
More

analog-extensions-for-ippbx
