Skyetel SIP Trunk Configuration Guide

How to configure Skyetel SIP trunk with Yeastar S-Series VoIP PBX

Configure a SIP Trunk

1. Create an Account with Skyetel
To start with, you need to have an account from Skyetel. Please visit their website to get a SIP account: https://skyetel.com/

2. Add a SIP Trunk in S-Series VoIP PBX
After you get the SIP trunk account, you need to add a SIP trunk in Yeastar S-Series VoIP PBX.
Go to Settings > PBX > Trunks, click Add.

s-series pbx add sip trunk

3. Configure the Skyetel trunk

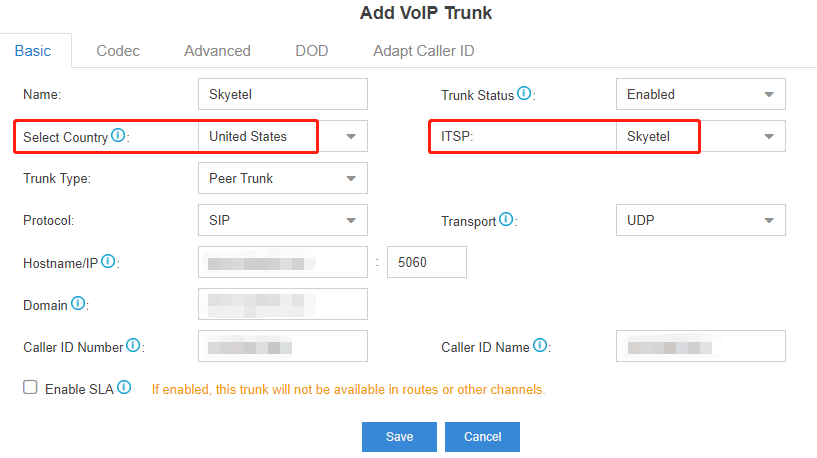

In the new window, select United States/Canada from the “Select Country” drop-down list and select Skyetel from the “ITSP”.

skyetel-add-trunk-s-series
  • Name: give this SIP trunk a name to help you identify it.
  • Protocol: SIP.
  • Trunk Type: Peer Trunk.
  • Transport: UDP.
  • Caller ID Number: your Skyetel Account DID number.

4. Check the Trunk Status
Click Save and Apply. Go to PBX Monitor to check if the SIP trunk is connected successfully as the screenshot below shows.

skyetel-trunk-status

Configure the Outbound Route with Skyetel Trunk

To make outbound calls via the newly created SIP trunk, you need to configure an outbound route for the trunk.
1. Create an Outbound Route
Go to Settings > PBX > Call Control > Outbound Routes, click Add.

config2 S-Series Add Outbound routes

2. Configure the Outbound Route
The system compares the number with the pattern that you have defined in your route 1. If it matches, it will initiate the call using the selected trunks. If it does not, it will compare the number with the pattern you have defined in route 2 and so on. The outbound route which is in a higher position will be matched firstly.
You can adjust the outbound route sequence by clicking these buttons

skyetel-add-outbound-route
  • Route Name: give this outbound route a name to help you identify it.
  • Dial Patterns: set the dial patterns. As the settings below, to make calls via the SIP trunk, you need to precede the number to be dialed with the prefix 8.
  • Dial Pattern: 8.
  • Strip: 1
  • Member Extensions: select the extensions that are allowed to make calls through the outbound route.
  • Member Trunks: select the Skyetel trunk.

3. Click Save and Apply
Now you can make outbound calls through the Skyetel trunk. As the dial patterns configured above, you need to dial “8” before the destination number.
For example, to call the number “101234567”, you need to dial “8101234567” on your phone.

Configure the Inbound Route with Skyetel Trunk

To specify how calls from the Skyetel trunk should be routed, you need to configure an inbound route for the SIP trunk.
1. Create an Inbound Route
Go to Settings > PBX > Call Control > Inbound Routes, click Add.

add inbound route

2. Configure the Inbound Route

skyetel-add-inbound-route
  • Name: give this inbound route a name to help you identify it.
  • Member Trunks: choose the Skyetel trunk.
  • Destination: select the destination where the incoming calls will be routed.

3. Click Save and Apply
When you call in the SIP trunk, the call will be routed to the destination configured on the inbound route.
