Analog Telephone Adapter

Ideal for residential users and small business to connect existing analog devices to IP-based networks cost-effectilvely

Convert Analog to VoIP
Cost-effectively and Efficiently

Powered by USB port. Portable
design. Quiet operation.

feature-rich-icon

Feature-rich

A robust feature set that fulfills your various needs and cuts communication cost

Easy

Easy

Simple and intuitive Web-based configuration saves you loads of time

cost-savings

Cost-Effective

Protect investment in existing analog telephones. Migrate to IP
voice with the easy-to-install ATA

miniature

Miniature

Featuring small form factor to save space. Powered by USB port of PC and IP-PBX directly.

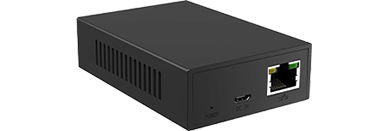

Models TA100 TA200
RJ11 FXS Ports 1 2
LAN 1 10/100 Mbps
Micro USB Port 1
Protocol SIP (RFC3261)
Transport UDP, TCP, TLS, SRTP
Codec G.711 (alaw/ulaw), G.729A/B
Voice Capability ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
DTMF Mode RFC2833, SIP Info, In-band
Fax T.30, T.38, Pass-through
QoS DiffServ, ToS, 802.1 P/Q VLAN tagging
Network DHCP, OpenVPN, PPPoE, Static Route, VLAN
Network Protocol FTP, TFTP, HTTP, HTTPS, SSH
Signaling FXS Loop Start, FXS Kewl Start
Caller ID BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal
Power DC 5V 1A
Dimensions (L × W × H) (mm) 85 × 58 × 24
Operation Range 0°C to 40°C, 32°F to 104°F;
Storage Range -20°C to 65°C, -4°F to 149°F
Humidity 10-90% non-condensing
Mounting Desktop
Compatibility Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix.

Key Features

  • 3-Way Conferece
  • Attack Alert
  • Auto Provisioning with Yeastar VoIP PBX
  • Blind Transfer
  • Call Forward (Always, Busy, No Answer)
  • Caller ID Display
  • Distinctive Ringtones
  • Hotline
  • MWI (FSK, Polarity Reversal)
  • Packet Capture Tool
  • System Logs
  • Web-Based Management
  • API
  • Attended Transfer
  • Backup and Restore
  • Call Detail Records
  • Call Waiting
  • Direct IP Dialing
  • Do Not Disturb
  • Firmware Upgrade by HTTP/TFTP
  • IP Blocklist
  • NAT Traversal
  • Speed Dial
  • Voice Menu for Basic Configuration

USE CASES

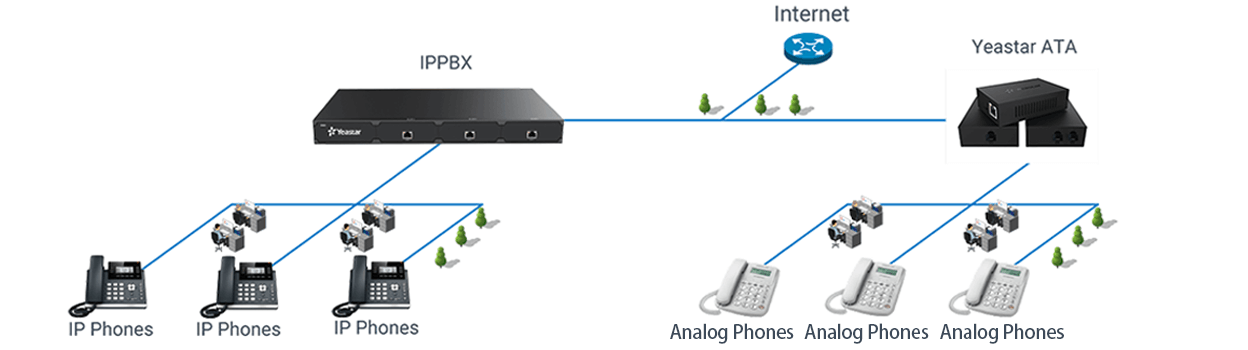

Analog Extensions for IP-PBX

By connecting analog phones and fax machines directly to the FXS ports of TA series gateways, or TA series analog telephony adapters, analog phones are enabled to work as extensions of the IP-PBX. Without additional investment on expensive IP phones, enterprises could access VoIP networks with the cheap analog phones.

More

analog-extensions-for-ippbx-ata

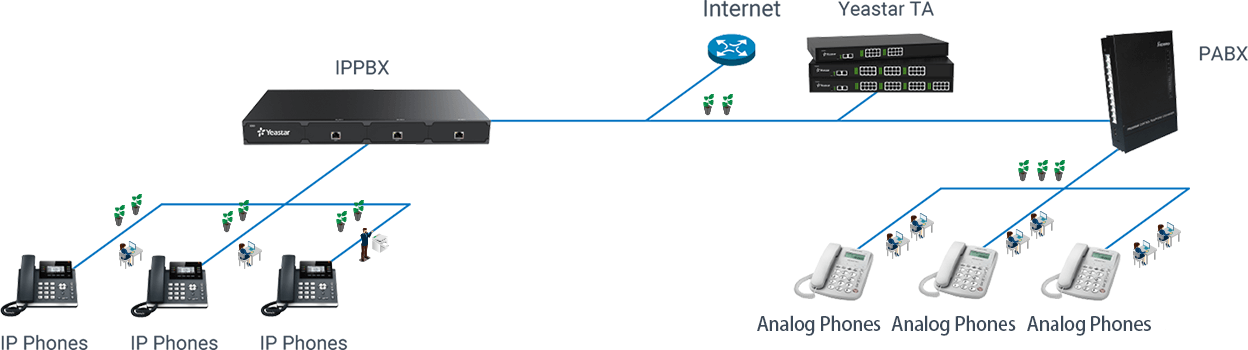

Connect Legacy Equipment to IP-PBX

For enterprises that want to evolve their communication infrastructures into a SIP environment, and hotels and enterprises with a large quantity of analog phones. you could integrate legacy equipment to the local IP system with TA. As a result, analog endpoints could utilize IP-PBX functionalities cost-effectively.

More

connect-legacy-equipment-to-voip
